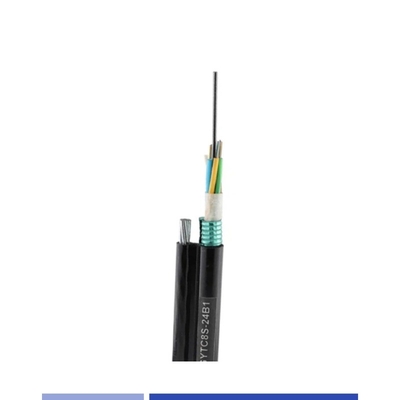

24 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S

Name: 24 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTC8S-824
Availability: InStock

Merknaam:	GoreLink
Modelnummer:	GL-GYTC8S-824
MOQ:	1000m
Leveringstermijn:	As per the order quantity
Betalingsvoorwaarden:	T/T,Paypal,Western Union,

Detailinformatie

Productomschrijving

Detailinformatie

Place of Origin:

Made in China

Certificering:

ISO,RoHS,REACH

Application:

Suitable for Duct,Aerial laying

Part Number:

GL-GYTC8S-824

Fiber Count:

24Cores

Fiber Type:

SM 9/125um

Armor:

Corrugated Steel Tape

Messenger:

Steel wire

Cable Type:

Outdoor Aerial Fiber Optic Cable

Cable Construction:

Stranded Loose Tube

Fiber Code:

GYTC8S

Jacket Material:

Packaging Details:

Wooden Drum/Spool+Carton

Productomschrijving

Gorelink Fiber Optic Arerial Cables are made for outdoor use along utility poles for cable television, telecom or other outside plant campus backbone applications. With the sturdy 1/4" galvanized messenger wire pre-attached to the aerial fiber optic cable, the cable is self-supported, virtually eliminating the need for the aerial fiber cable to be lashed to an external wire. This figure-eight design reduces the installation time and cost by approximately 50% when compared to separate installation of a messenger wire and the lashing of the cable to the messenger.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	24 Core

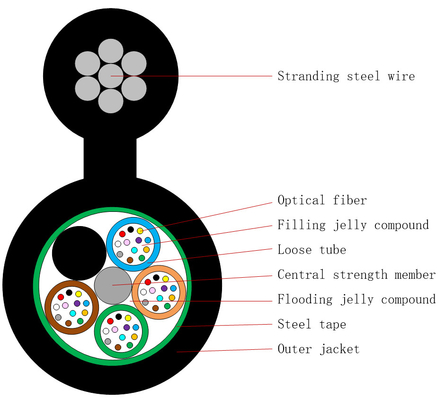

Cable structure	Stranded Loose tube
Cable Armor	Corrugated Steel Tape Armor
Central Member	Steel wire
Strength Messenger	7x 1.0mm Steel wire
Cable Diameter	9.5*16.5±0.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

24 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S 0

Download Datasheet

Outdoor Aerial Fiber Optic Cable- GYTC8S-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTC8S-802	Outdoor Aerial Fiber Optic Cable, 2 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-806	Outdoor Aerial Fiber Optic Cable, 6 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-808	Outdoor Aerial Fiber Optic Cable, 8 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-812	Outdoor Aerial Fiber Optic Cable,12 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-824	Outdoor Aerial Fiber Optic Cable, 24 Fiber, Singlemode G652D, PE, Black, GYTC8S
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com.
